Product Description
Shentuo ST series trucks are mainly used in underground non-coal mines, mainly for transporting mine materials after blasting, but also for roads, railroads and other narrow, low, harsh environment of the tunnel project. The core parts of this series of trucks are all international famous brand products, with compact structure design, strong power and stable performance. It is comfortable to drive and efficient in transportation.

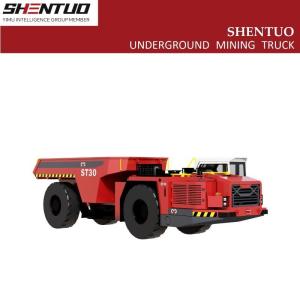

The ST30 truck is an underground mining truck with 30 tons capacity. It has innovative features that can easily cope with harsh conditions and provide great power, strength and reliability to help you maximize your productivity. Designed to withstand harsh underground environments, the heavy-duty front and rear frames provide superior quality, reliability and durability to meet user requirements, making transportation simpler and more efficient. Shentuo mining trucks have the characteristics of compact structure, firmness and durability, and can provide safe, efficient and high-speed long-distance mining transportation in harsh underground environments. The truck adopts a centrally connected slewing bearing structure, and the turning radius is small to achieve high mobility, which can ensure the four-wheel drive of the equipment at all times and increase the traction force. The world-class low-emission and powerful diesel engines of different brands are optional, including the advanced National IV and Stage V engines to ensure the continuous high performance and fuel efficiency of the equipment. All Shentuo's mining trucks can operate at high speed with full load on long-distance spiral transport ramps with a gradient of up to 25%, and the trucks have auxiliary braking functions to ensure the safetyand reliability of equipment ramps. The advanced powertrain technology includes proven toraue converter, transmission gear and drive axle ensuring fast ramp seeps and greater traetion. The brakes use SAHR for the safer braking. The hopper with curved design to reduce the accumulation of materials, and the frames are mostly designed with box-type structure to increase the strength, and all the frames are made of Q460C steel plate, which has proven high structural strength. The cab conforms to the ROPS/FOPS standard, and an air-conditioned enclosed cab is optional. The scientific ergonomic design of the cab is adopted to improve the operation safety and increase the driving comfort. Product Parameters
| | Item | Unit | ST30 Underground Mining Truck |
| Capacity | Standard Bucket | m³ | 15 |
| Operating Weights | kg | 29500 |
| Tramming Capacity | kg | 30000 |
| Breakout Force | kN | 330 |
| Traction Force | s | 14 |
| Configuration | Drive Model | | 4×4 |
| Transmission Model | | Hydraulic transmission |
| Brake Model | Working Brake | | Spring Applied and Hydraulic Released Equipment |
| Parking Brake | | Spring Applied and Hydraulic Released Equipment |
| Equipment Size | Dimension | mm | L | 10235 |
| | | W | 2920 |
| | | H | 2580 |
| Ground Clearance | mm | 395 |
| Wheelbase | mm | 5520 |
| Turning Radius | mm | inner | 4650 |
| | outer | 8560 |
| Bucket Height | mm | 5440 |
| Performance | Speed | km/h | 1st gear | 6 |
| 2nd gear | 11 |
| 3rd gear | 19 |
| 4th gear | 32 |
| Gradeability | % | 25 |
| Diesel Engine | | | VOLVO TAD1362VE |
| Power | kW | 315 |
| Torque | Nm | 2140 |
| Engine Speed | rpm | 1900 |
| Displacement | L | 12.8 |
| Fuel Injection System Form | | Common rail |
| Emissions | | Euro stage III |
| Fuel Tank Refill Capacity | L | 550 |
| Configuration | Converter | | DANA C8000 |
| Transmission | | DANA 6000 |
| Axle | | DANA 20D |
| Tire | | 26.5R25 E4 |
| Optional | Automatic Central Lubrication | | LINCOLN |
| Centralized Fire Extinguishing System | | Ansul/Protecfire |
| Emissions | | Euro Stage IV |
Company Profile
Hubei Shentuo Intelligence Equipment Co., Ltd. is a wholly-owned subsidiary of Yimu Intelligence Technology Co., Ltd. and consists of Hubei Suizhou production plant and Wuhan R&D center, which is a technology-based enterprise focusing on the research and development, production, sales, after-sales and export of underground equipment for coal and metal mines, aiming at the global market with its products.
Shentuo Intelligence is based on scientific and technological innovation and oriented to customers' needs. Currently, Shentuo Intelligence has a new generation of concrete mixer trucks, loaders, mine trucks and other series of diesel and purely electric models, which can adapt to customers' mining needs in a variety of situations, improve the productivity and economic benefits of mining, and strive to improve the sense of safety and happiness of underground workers.
Shentuo Intelligence adopts advanced quality management system to provide first-class quality underground equipment: at the same time, Shentuo Intelligence adheres to intelligent manufacturing, and builds up the leading manufacturing capacity of underground equipment industry through advanced ERP and informationization system to ensure the delivery cycle. In the future, Shentuo Intelligence will continue to be committed to all-round innovation, provide the most intelligent and efficient technology and products for the domestic and international mining industry, and make continuous efforts to promote productivity enhancement, industry development and ESG construction!
Exhibition
Certifications
Packaging & Shipping
Our Advantages
FAQ
1. Q: What kind of terms of payment can be accepted?
A: Normally we can work on T/T and other terms is also negotiable.
2. Q: Which incoterms 2010 terms can we work?
A: Normally we work on FOB, CFR, CIF, EXW.
3. Q: What about the delivery time?
A:It depends on the model, usually 2-6 months after receiving the deposit.
4. Q: What about the warranty time?
A: In12 months after shipment, o within 2000 hours of equipment operation, we can provide the free repair service.
5. Q: What about the Minimum Order Quantity?
A: The MOQ is 1 set.
6. Q: Could you stick customers' brands on the products?
A: We warmly welcome the OEM orders.
